upport AMD Athlon 3000 series and AMD Rzyon 4000 series CPU

Support AMD A300 or X300 Chipset

AMD AM4 Series 65W max CPU 3000G/3200GE/3400GE.etc Type 1/Type 3,Type 5、Type 7 series CPU

AMD AM4  Series 65W max CPU 4000G/4650G/4750G .etc Type 1/Type 3,Type 5、Type 7 series CPU (P[icasso/Raven Ridge1/Ridge 2 Renoir )

CHipset AMD A300 AND X300

RAM:Support 2* SODIMM DDR4 ,Support overclocking function

HDD: 1*M.2 nvme  (Support PCIE X4 2280 GEN3 x4 NVME

         1*SATA +7 PIN SATA3 6GB port +5V power (Only support 2.5inch HDD )

WIFI/BT : M.2 E-Key 2230 port

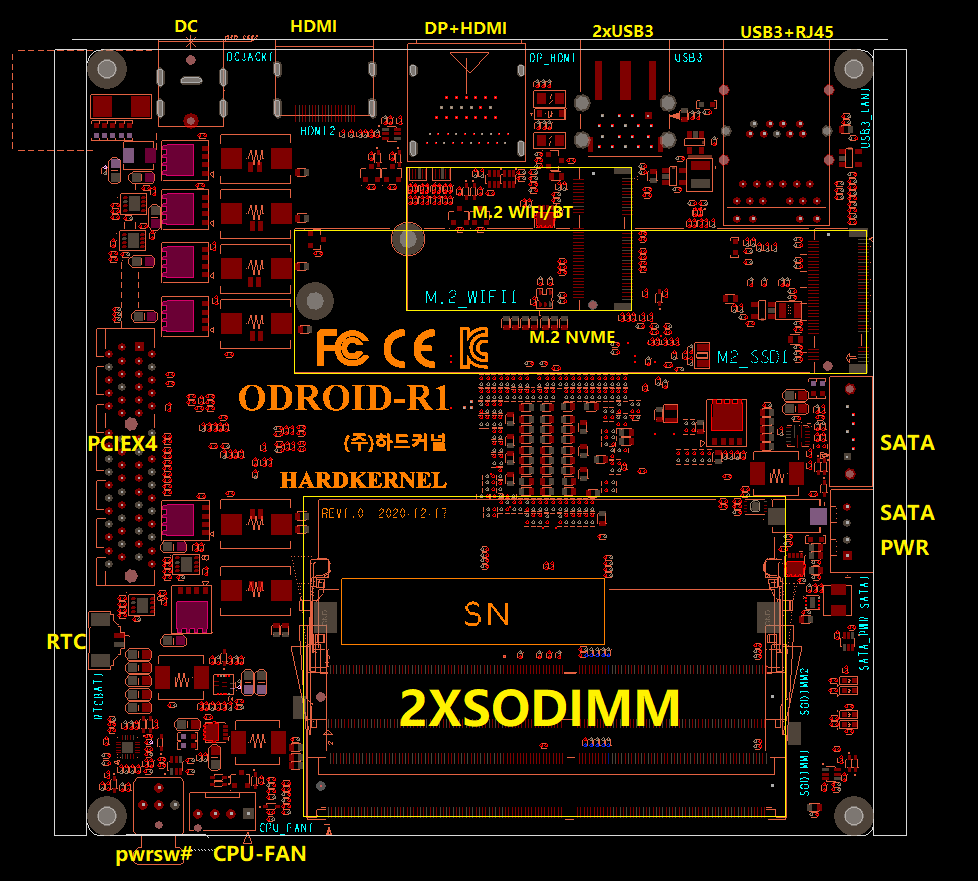

OUT-IO:

1*DC-IN (SUPPORT 12-19V)

1*HDMI+DP ALL IN ONE ,Support 4K x 2K(4096x2304) @ 60Hz

1*HDMI 1.4 (4096x2304) @ 60Hz

2*USB3.0

1*USB3.0+2.5G RJ45 (RTL8125B)

IN-IO:

1*CPU FAN Wafer/2.54，4PIN，Smart FAN 12V

1*PWRSW 1*PWRSW ，With Power LED
1*PCIE x4 , 1*PCIE x4 ，Max Support 25W
1*RTC  Wafer/1.25, 2PIN
LED: 4*LED 1*DC LED，1*PWR LED，1*SATA LED，1*M.2 LED
Charger: 12~19V 12~19V

SIZE: 120*120 mm
