Windows10 miniPC/tablet PC PCBA intel Z8350 mainboard
Update：2019/6/18 10:43:35 View：5295
- Type C10
- Description
• Integrated Intel Atom X5-Z8350 quad core CPU
• Support windows10 / Linux （Ubuntu 16.04) OS
• Mini standard mainboard design,Rich port to extend
• Onboard DDR3L Ram and eMMC Rom
• Support MINI PCIE 3G/4G model
• Welcome to ODM different I/O board and BIOS
• Support windows10 / Linux （Ubuntu 16.04) OS
• Mini standard mainboard design,Rich port to extend
• Onboard DDR3L Ram and eMMC Rom
• Support MINI PCIE 3G/4G model
• Welcome to ODM different I/O board and BIOS
Introduction
| CPU | Intel Atom X5-Z8350 1.446Ghz-1.92Ghz Quad core，TDP 2W |
| Operation system | Windows10 or Linux （Ubuntu 16.04) |
| Ram | DDR3L 2GB/4GB (option) |
| Rom | eMMC 32GB / 64GB / 128GB (option) |
| Screen | Support LVDS / MIPI output（ already tested 7inch ， 8inch， 10.1inch and so on） |
| Touch panel port | Support USB port |
| GPU | Intel HD Graphics |
| WIFI/BT | Onboard RTL8723B or AP6212 2.4G WIFI/BT model or AP6234 dual frequency WIFI model |
| 3G/4G | Support mini PCIE port 3G/4G mode |
| GPS/BD | Support GPS/BD dual model |

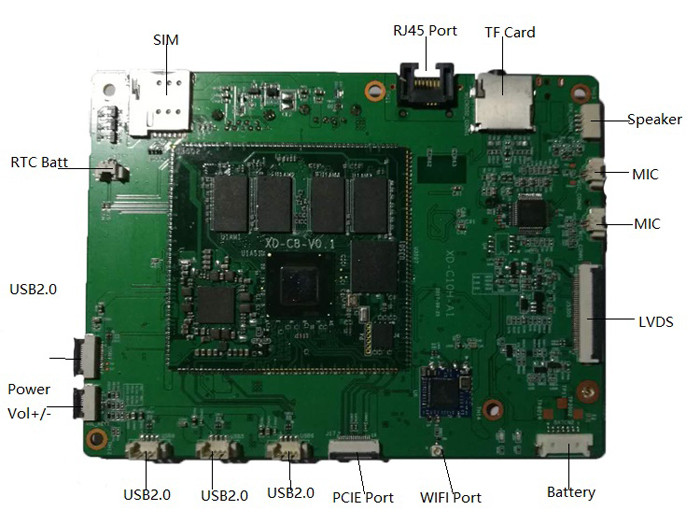

| Intel I/O interface | 2*speaker， 2*MIC， 1*RTC battery， 1*battery， 1*Power button/volumn +/- |
| 1*PCIE， 1*MINI PCIE（3G/4G），1*USB（TP），3*USB | |

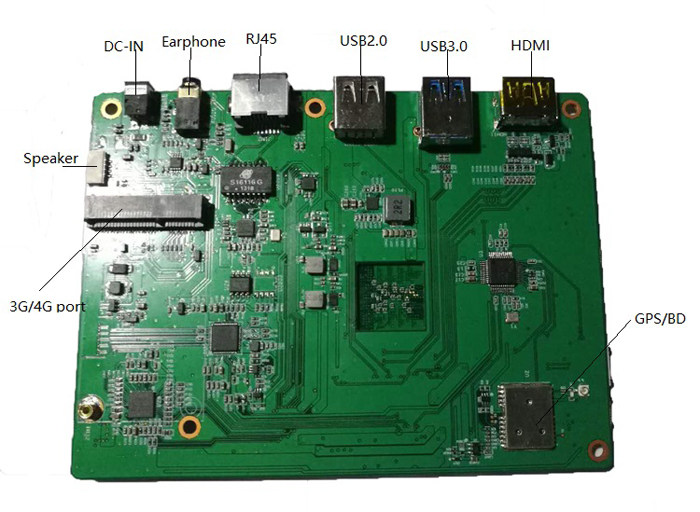

| external I/O interface | 1*USB2.0， 1*USB3.0， 1*RJ45， 1*HDMI， 1*earphone Jack, 1*DC in，1*Micro SD card reader，1*SIM card reader |
| Battery | Support 3.7V battery max to 16000mah, 7pin conn |
| Power | 12V=3A |
| Size | 130mm*97mm |
| BIOS | Support customize BIOS （booth up LOGO，0V booth up and button booth up） |
| Using Occasions | Portable mobile PC， industrial tablet PC and so on |
