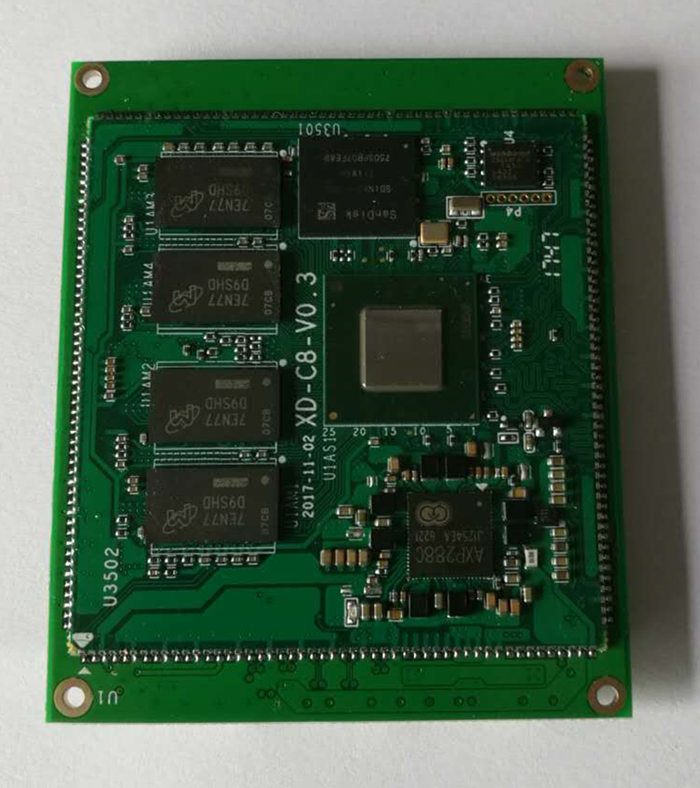

Intel Atom X5- Z8350 core PCBA
Update：2019/6/19 15:10:20 View：6728
- Type C8
- Description
• Integrated Intel Atom X5-Z8350 quad core CPU
• Support windows10 / Linux （Ubuntu) OS
• Stamp hole patch core module (size 60*57*3.2mm)
• Onboard DDR3L Ram and eMMC Rom
• Rich port to extend,low power without fan design
• Welcome to ODM different I/O board and BIOS
• Support windows10 / Linux （Ubuntu) OS
• Stamp hole patch core module (size 60*57*3.2mm)
• Onboard DDR3L Ram and eMMC Rom
• Rich port to extend,low power without fan design
• Welcome to ODM different I/O board and BIOS
Introduction
Product specification :
| CPU | Intel Atom X5-Z8350 1.446Ghz-1.92Ghz Quad core，TDP 2W |
| Operation system | Windows10 / Linux （option) |
| Ram | DDR3L 2GB/4GB (option) |
| Rom | eMMC 32GB / 64GB / 128GB (option) |
| GPU | Intel® HD Graphics 400 |
| I/O interface | 1*USB3.0 |
| 4*USB2.0 | |
| 2* PCIE | |
| 2*digital signal(extend HDMI,LVDS.MIPI.EDP and so on ) | |
| 1*I2C | |
| 1*LPC | |
| Power | 12V=3A |
| Size | 57*60mm |
| BIOS | Support customize BIOS （booth up LOGO，0V booth up and button booth up） |
