10inch alloy case windows/Linux/Ubuntu OS rugged tablet PC
- Type BR1003
- Description
• Rugged Tablet PC
• aluminium alloy case with rubber corner
• Intel cerelon N2930 CPU quad core
• Support Win7 / win8.1 / win10 / LINUX / CENTOS / Ubuntu OS
• Rich I/O interface option
• 3G/4G，Sunlight can be viewed screen,7.4V 8000mah battery option
• IP leave : IP65
Processor
Intel® Celeron® N2930 (2M Cache,up to 2.16GHz)
GPU
Intel® HD Graphics for Intel Atom® processor
Z3700 series

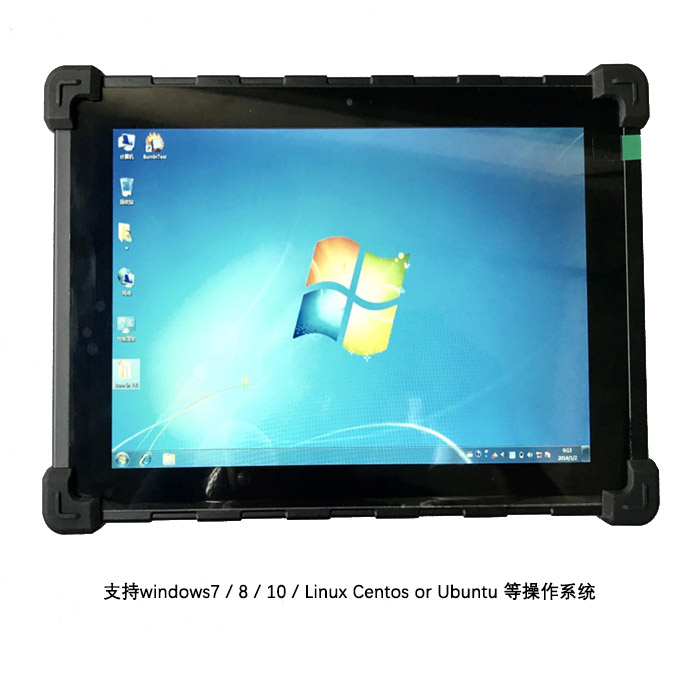

Operation system
Windows 7 /8/10/Linux (Centos or Ubuntu
),etc.(option)
RAM
DDR3L 2GB/4GB/8GB option
ROM
SSD 32GB / 64GB / 128GB / 240GB Option
Suppprt Micro SD card (up to
128GB)
Display
10.1inch IPS
1280*800
Touch Screen
10-Point IPS Capacitive Touch screen
Camera
back 5.0
MP (option)
Speaker
built-in 2*speaker
WIFI
built-in
802.11 b/g/n (2.4Ghz/5G)
Network
Built-in
RJ45
Bluetooth
built-in bluetooth 4.0
3G /4G
(PCIE module)
option

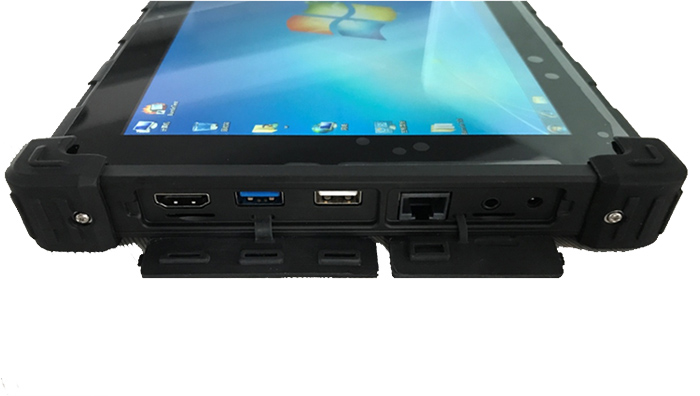

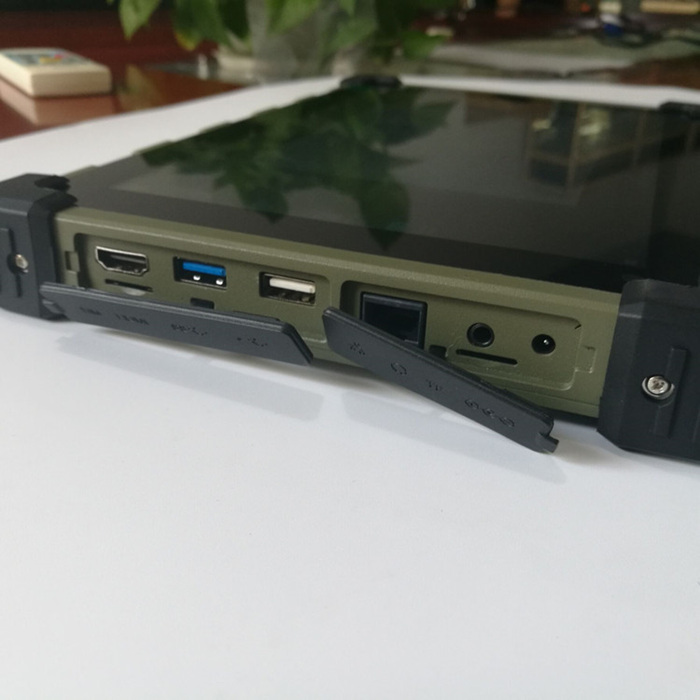

I/O interface
1*USB3.0,1*USB2.0,1*RJ45 port（1000MB）,
1* HDMI, 1*TF card slot,1*SIM card
slot,
1* earphone jack, 1*DC-in(12V=3A)
I/O
interface2
Right side(option)
2*USB 2.0
1*COM （RS232)（RS422）（RS485)
1*COM（RS232)（RS422）（RS485)

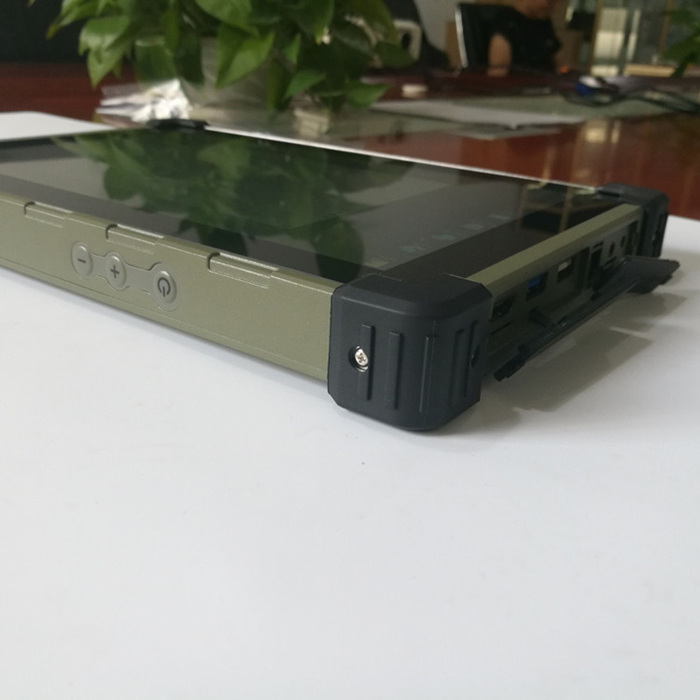

Button
1*Power Button , 1*Vol
+ , 1*Vol -, F1 key
Battery
Li-Polymer Battery 7.4V/4000mah
work time:4-5 hours, standby time:120hours( 5days)
7.4V/8000mah battery option
Power
12V=3A (3.5mm)
Case
Aluminum alloy case,rubber corner guard
IP Level
IP 65
Product Size
270*180*23mm
Net weight : 1.1Kg
Package size
290*200*47mm Gross weight:1.3Kg
Drop height test
Starting state of 100cm composite wood floor;
Work temperature
-25° C to 50 ° C ；
Storage temperature
-40 ° C to 70 ° C；
Humidity
Humidity: 95% Non-Condensing；
